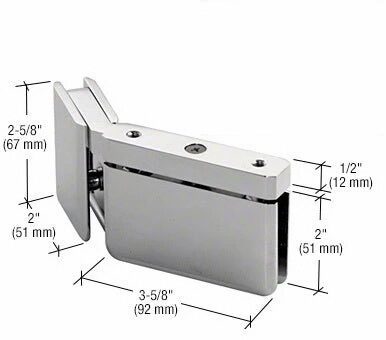

PR0735L Left Hand135 Degree Beveled Piovt Shower Hinge with U-Clamp
PR0735L Left Hand135 Degree Beveled Piovt Shower Hinge with U-Clamp - Image 2
PR0735L Left Hand135 Degree Beveled Piovt Shower Hinge with U-Clamp - Image 3

PR0735L Left Hand135 Degree Beveled Piovt Shower Hinge with U-Clamp

Price range: $19.00 through $20.00

+ Free Shipping
SKU: PR0735L Categories: , Brand:
  • Provides Alternative to Traditional Header System Use
  • For use with 3/8″ or 5/16″ (10 or 8 mm) Thick Tempered Safety Glass



Specifications

Edge ProfileBeveled
Glass To Glass Angle135
Glazing Thickness5/16 in. To 3/8 in. (8 mm To 10 mm)

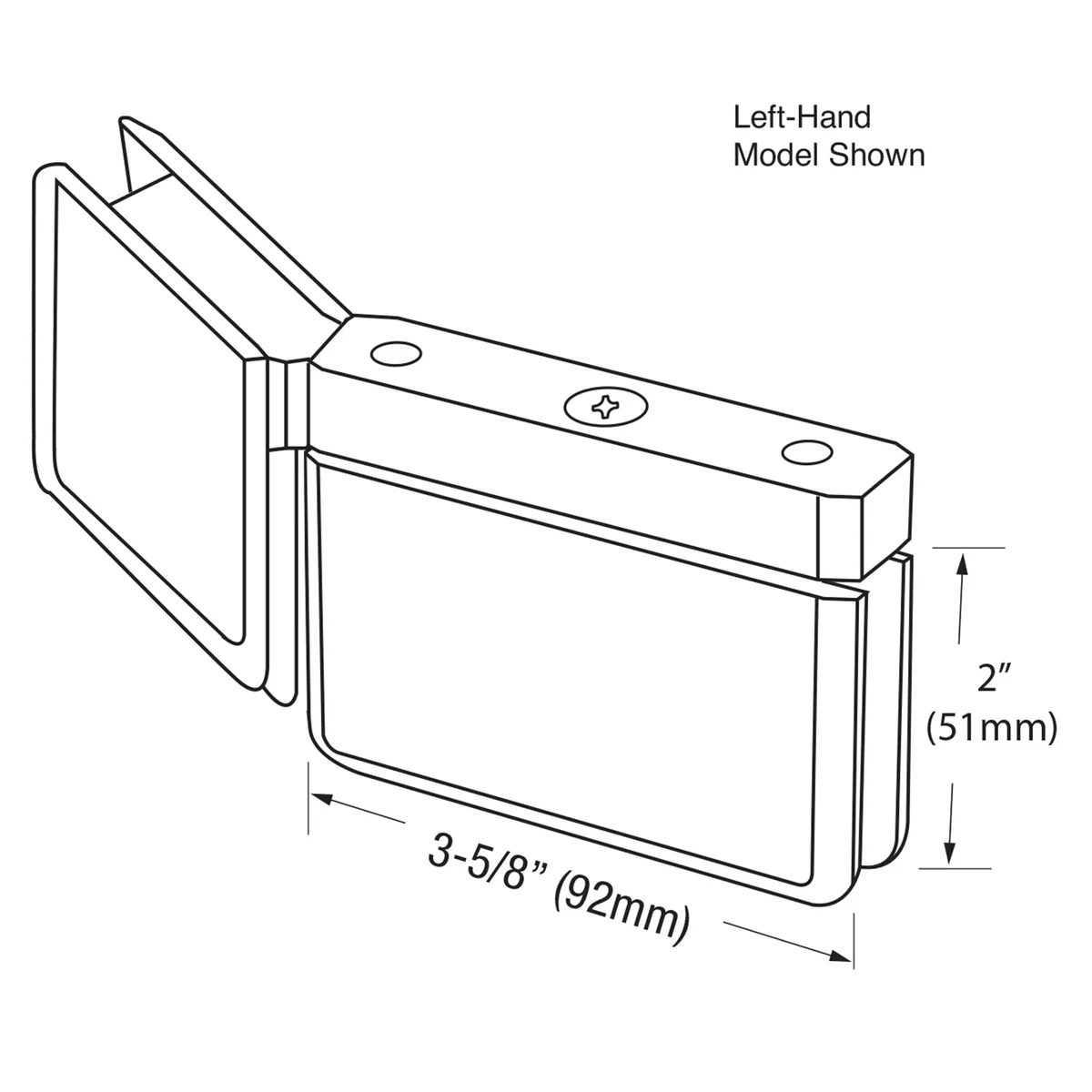

HandingLeft Hand
Height2-5/8 in. (67 mm)
Height – Door Portion2
Height – Sidelite Portion2-5/8
MaterialBrass
Maximum Door Weight100 lbs. (45.4 kg)
Maximum Door Width31 in. (787 mm)
Mounting TypeHead & Sill Mount
Self-CenteringYes
SeriesPrma
Width – Door Portion3-5/8 in. (92 mm)
Width – Sidelite Portion1-13/16 in. (46 mm)
Color

Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
