PI380 Adjustable Standard Beveled180 Degree Glass-to-Glass Shower Hinge

Price range: $20.00 through $21.00

+ Free Shipping

SKU: PI380 Categories: Adjustable Shower Hinge, Shower Door Hardware Brand: TOPGLASS

Description
Additional information

Adjustable to Any Angle Up to 90 Degree Without Removing Door
Available in Several Beautiful Finishes
Adjustable 180 Degree Glass-to-Glass

Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles.

Custom finishes are available on request.

5 Degree Pre-Set	No
Adjustable	Yes
Edge Profile	Beveled
Glass To Glass Angle	180
Glazing Thickness	5/16 in. To 1/2 in. (8 mm To 12 mm)

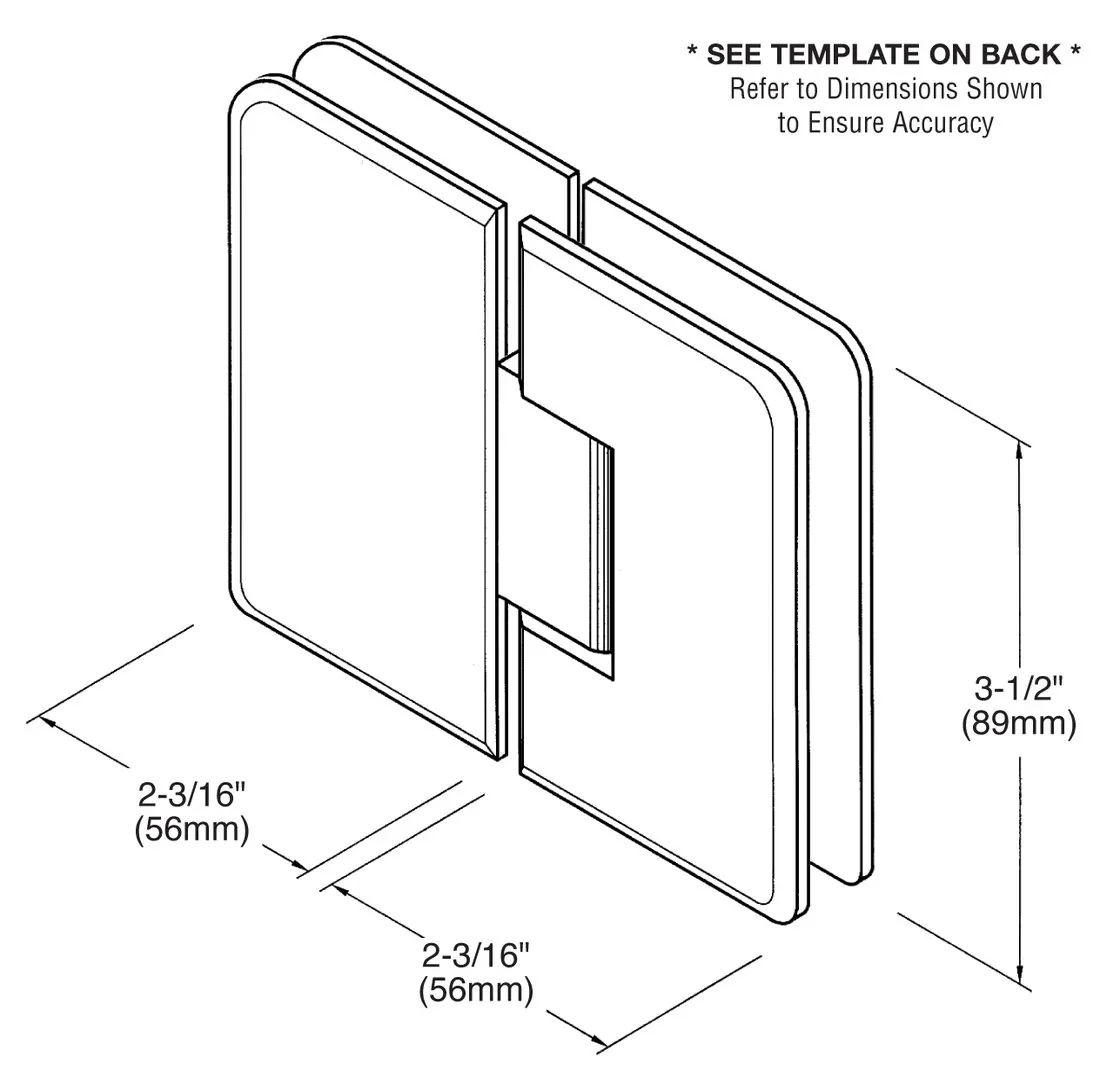

Height	3-1/2 in. (89 mm)
Material	Brass
Maximum Door Weight – 2 Hinges	80 lbs. (36.3 kg)
Maximum Door Weight – 3 Hinges	120 lbs. (54.4 kg)
Maximum Door Width – 2 Hinges	28
Maximum Door Width – 3 Hinges	32
Mounting Type	Glass To Glass
Self-Centering	Yes
Series	Pina Adjustable
Width – Door Portion	2-3/16 in. (56 mm)
Width – Sidelite Portion	2-1/2 in. (63.5 mm)

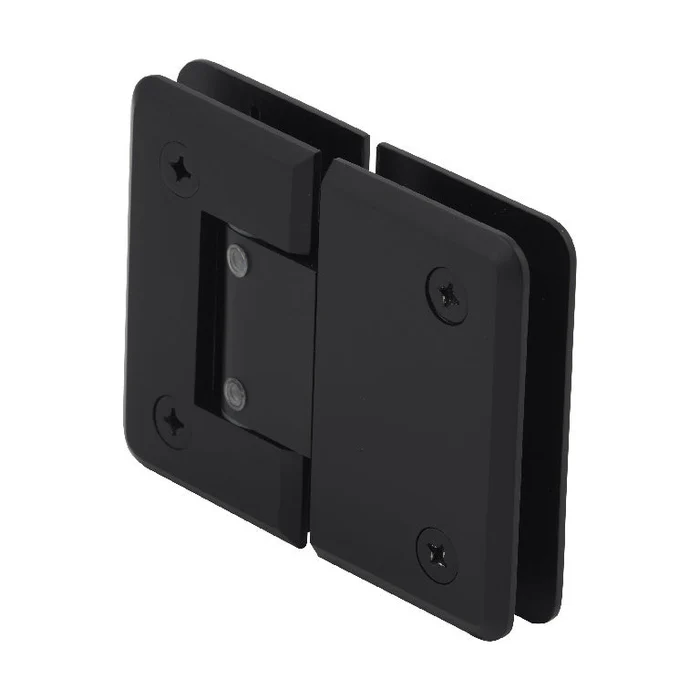

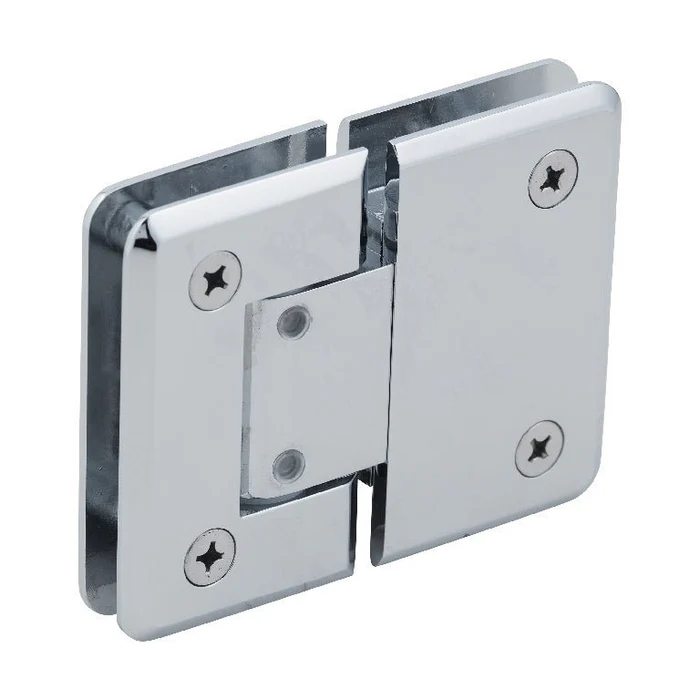

Color	Antique Brass, Brushed Bronze, Brushed Nickel, Chrome, Gun Metal, Matte Black, Polished Brass, Polished Nickel, Satin Brass
