- Self-Centering with Reversible 5 Degree Pivot Pin
- Available in Several Beautiful Finishes

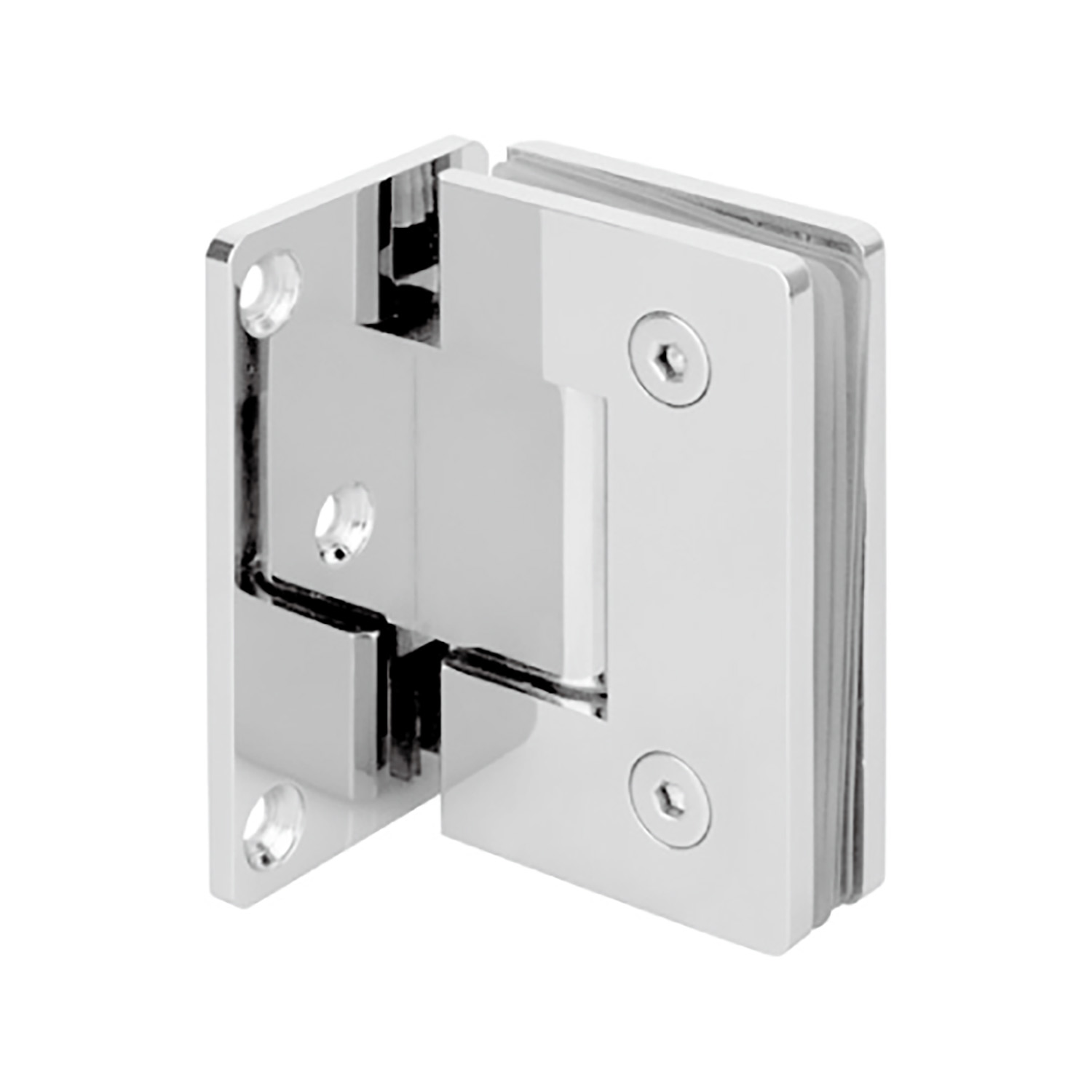

- Wall Mount Offset Back Plate Standard Model (Factory Set for Standard Closing Position)
Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).
Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | Offset |
| Edge Profile | Round Corner |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |

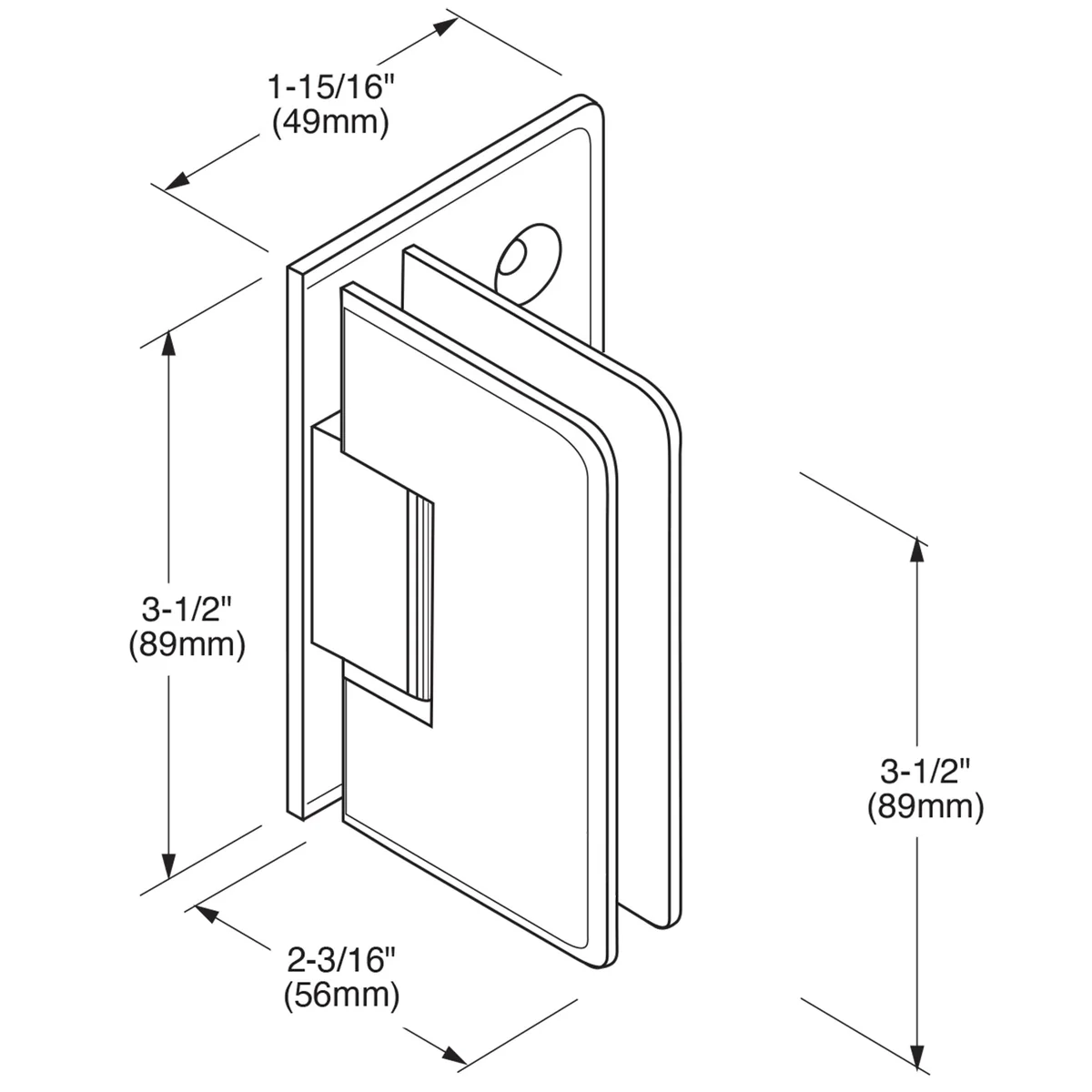

| Height | 3-1/2 in. (89 mm) |
| Material | Brass |
| Maximum Door Weight – 2 Hinges | 80 lbs. (36.3 kg) |
| Maximum Door Weight – 3 Hinges | 120 lbs. (54.4 kg) |
| Maximum Door Width – 2 Hinges | 28 |
| Maximum Door Width – 3 Hinges | 32 |
| Mounting Type | Wall Mount |
| Self-Centering | Yes |
| Series | Rena |
| Width | 2-3/16 in. (56 mm) |
